Heru 2: Precision Rebuild for Cubitts

Role: Senior 3D Engineer
Company: Cubitts
Duration: 2025 (6 months)
Stack: Three.js, TypeScript, MediaPipe, iOS, Blender, Python, Node.js, AWS

Related Projects:

• Heru 1 - The original consumer app (2019-2022)
• Frame Up - Automated 3D modeling pipeline
• Tartare - The Three.js framework powering the visualization

From Consumer App to Clinical Tool

I returned to Cubitts in 2025 to rebuild the platform I originally created three years prior. The mission: transform Heru from a consumer recommendation app into a precision instrument for professional opticians.

While Heru 1 was built for speed (<2s recommendations), the bespoke team needed clinical accuracy. I rebuilt the core physics engine and landmark system from scratch, achieving a 75% accuracy boost (±0.5mm) while keeping the real-time performance.

The Accuracy Gap

The original system used approximated geometry to scan 60+ frames in seconds. This was great for finding a “look,” but insufficient for manufacturing custom eyewear.

Opticians needed:

• Sub-millimeter precision (±0.5mm vs the old ±2mm)
• Interactive control to slide and adjust frames manually
• Real-time feedback on pressure points
• Support for non-standard faces that the old heuristic rejected

I had to ditch the approximations and solve the full geometric constraints in real-time.

Rebuilding the Physics Engine

I replaced the old ray-casting system with a custom grid-based collision engine.

1. Spatial Partitioning

Instead of testing every triangle, I implemented a uniform grid subdivision.

• Broad-phase: Instantly filters out 90% of non-colliding geometry.
• Narrow-phase: Performs precise triangle-triangle intersection only where needed.

This allowed us to use high-fidelity production meshes instead of simplified proxies, achieving a 33x speedup (<300ms per fit) with zero loss in precision.

2. Constraint-Based Solver

Opticians don’t just want a recommendation; they want to tweak it. But moving a frame on a 3D face is complex—changing one axis breaks the fit on others.

I built a real-time constraint solver. When an optician slides the frame forward (Z-axis):

• The system automatically recalculates height (Y) and tilt (pantoscopic angle).
• It ensures the frame “glides” along the nose bridge while maintaining proper ear contact.
• It visualizes pressure points instantly (red zones in the video).

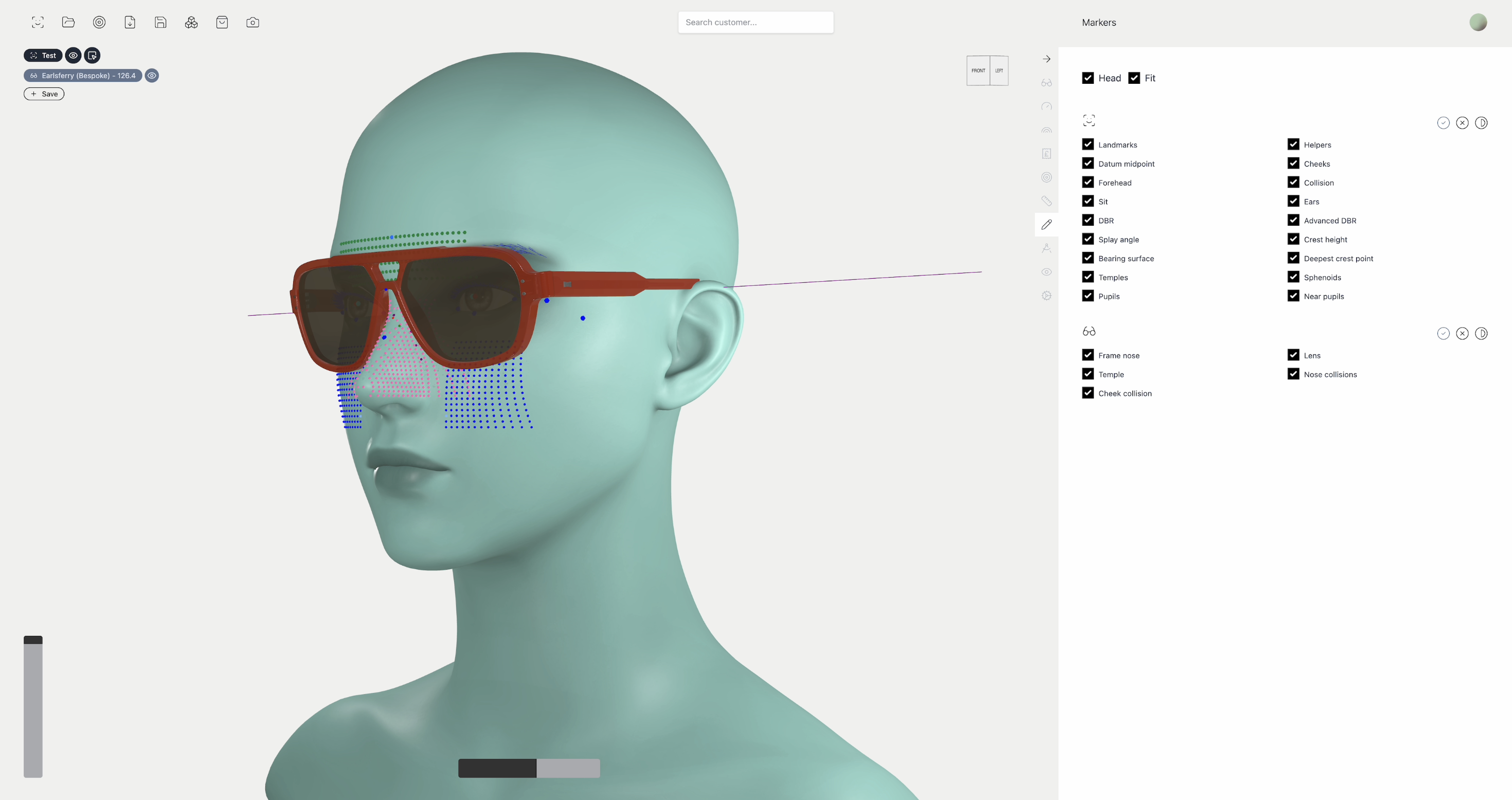

Replacing the Eyes: MediaPipe Pipeline

The original app relied on Bellus3D for facial landmarks. When they shut down, we lost our data source.

I built a new pipeline using Google’s MediaPipe Face Mesh:

1. Rotation Solving: The system analyzes the scan from multiple angles to find the optimal orientation.
2. Landmark Extraction: Detects 468 facial points in under a second.
3. 3D Projection: Maps 2D landmarks back onto the 3D scan topology.

The result was 99.9% detection success, handling even extreme head rotations that broke the old system.

Asset Pipeline Automation

To support this new level of precision, our 3D assets needed to be perfect. I wrote a Blender addon (Python) for the asset team that:

• Automates the cleanup of CAD files
• Generates the collision-optimized GLB files
• Validates geometry before export

Results

By focusing on physics and tooling rather than just “AI magic,” we turned a fun consumer app into a serious medical tool.

• Accuracy: Improved from ±2mm to ±0.5mm.
• Speed: Full fit calculation in <300ms on M1 iPads.
• Workflow: Saved opticians 2-3 minutes per consultation by automating manual measurements.
